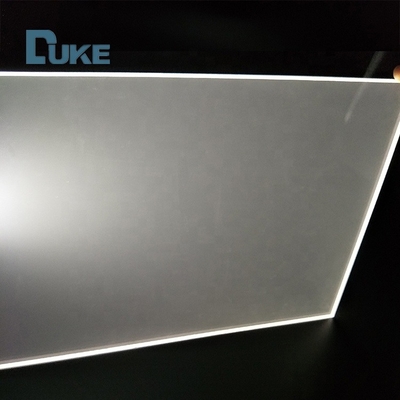

Name | Duke Transparent Clear Acrylic Light Diffuser Sheet |
Material | 100% Virgin Misubishi MMA,Imported Color Pasted,PILKINGTON Mould |
Process | Cast |
Density | 1.2g/cm3 |
Light Transmittance | 93% |
Type | Advertising Acrylic Sheet/Sanitary Acrylic Sheet/Sound Barrier Panel/Aquarium |
Size |
960*2520,1100*1880,1230*2450,1250*1850,1320*2590,1370*1970,1470*2810, 1540*2460,1550*3050,1560*2550,1630*1730,1690*1910,1700*2450,1730*2530, 1790*2050,1790*1850,1810*1930,1940*1960,1940*2900,1960*2640,1970*2080, |
Thickness | 2-40mm |
Color | Cleare,Transparent |
Packing | Craft Paper Or PE Film |
Certification | ISO,CE,SGS |
Application | Led Light box/Advertising Sign/Decoration/Acrylic Crafts and so on |
Acrylic Sheet Features
1).Acrylic sheets has an excellent light transmittance which is as high as 93%,acrylic has fine luser and high gloss.
2).Acrylic sheets has an excellent weatherability and anti-ultraviolet radiation.
3).Acrylic sheets has an excellent surface hardness and hard to be scratched.
4).Acrylic's color can last long time in terrible weather.
5).Acrylic sheets is clean,is one of non-national building materials industry radiation mandatory testing material,and can be sustainable recovery.
6).Acrylic sheets is as hard as good-quality aluminum alloy and anti-scratched.The surface of acrylic is easy to clean.Resistance to impact is rather strong.
7).Acrylic sheets performas well during -400C-+900C.
Duke Acrylic Sheet Physical Properties
Properties | GB | Unit | Duke Acrylic |
Specific Gravity | GB/T1033.1 | 1.19 | |
Refractive Index | ISO489:1999 | 1.49 | |
Transmittance | GB/T2410 | % | 92 |
Haze | GB/T2410 | % | 1 |
Tensile Strength | GB/T1040.1 | MPa | ≥70 |
Modulus of Elasticity | GB/T1041 | MPa | ≥3100 |
Bending Strength | GB/T9341 | MPa | ≥98 |
Compressive Strength | GB/T1041 | MPa | ≥130 |
Elongation at Break | GB/T1040.1 | % | ≥4 |
Shock Ressistance Strength | GB/T14153 | 30J+1J | |
Charpy Unnotched Impact Strength |
GB/T1043.1 | kJ/ | ≥17 |
Rockwell Hardness | GB/T3398.2 | 95 | |
Barcol Hardness | GB/T3854 | 45-55 | |
Thermforming Tempreature |
℃ | 160-185 | |
Vicat Softening Tempreature |
GB/T1633 | ℃ | ≥110 |
Coefficient of Thermal Expansion |
GB/T1036 | % | ≤7 |
Maximum Recommended Continous Service Temperature |
℃ | 70 | |
Coefficient of Thermal Conductive |
W/m.k | 0.18 | |
Specific Heat |
0.35 | ||
Water Absorption |
GB/T1034 | % | 0.3 |
Fire Ressistance |
GB8624 | ≥E | |
Prevent Scuffing |
GB/T6739 | H | ≥5 |
Duke Acrylic Packing Ways
1).Kraft Paper Packing(Easy To Laser Cutting)
2).PE Film Packing(Easy To Tear Off)
Q1: Whether the raw material is brand new
A1: Because we have been a partner of Mitsubishi Rayon for many years, we have promised to use only 100% pure new Mitsubishi MMA
Q2: Product tolerance
A2: The product adopts the world-class casting process, and we control the tolerance within 0.2mm (sanitary board and advertising board ±0.2mm, noise barrier board -0.2mm)
Q3: Product impurities
A3: The whole workshop of the company has strict environmental hygiene standards, multilayer special filter to eliminate the possible incorporation of impurities . we will carry out strict inspection for each batch of products, to ensure that the quality of each batch is the same
Q4: Product color
A4: We have 100 colors to choose from. If you need to customize, please specify in advance
Q5: MOQ
A5: MOQ: 1000 kg
